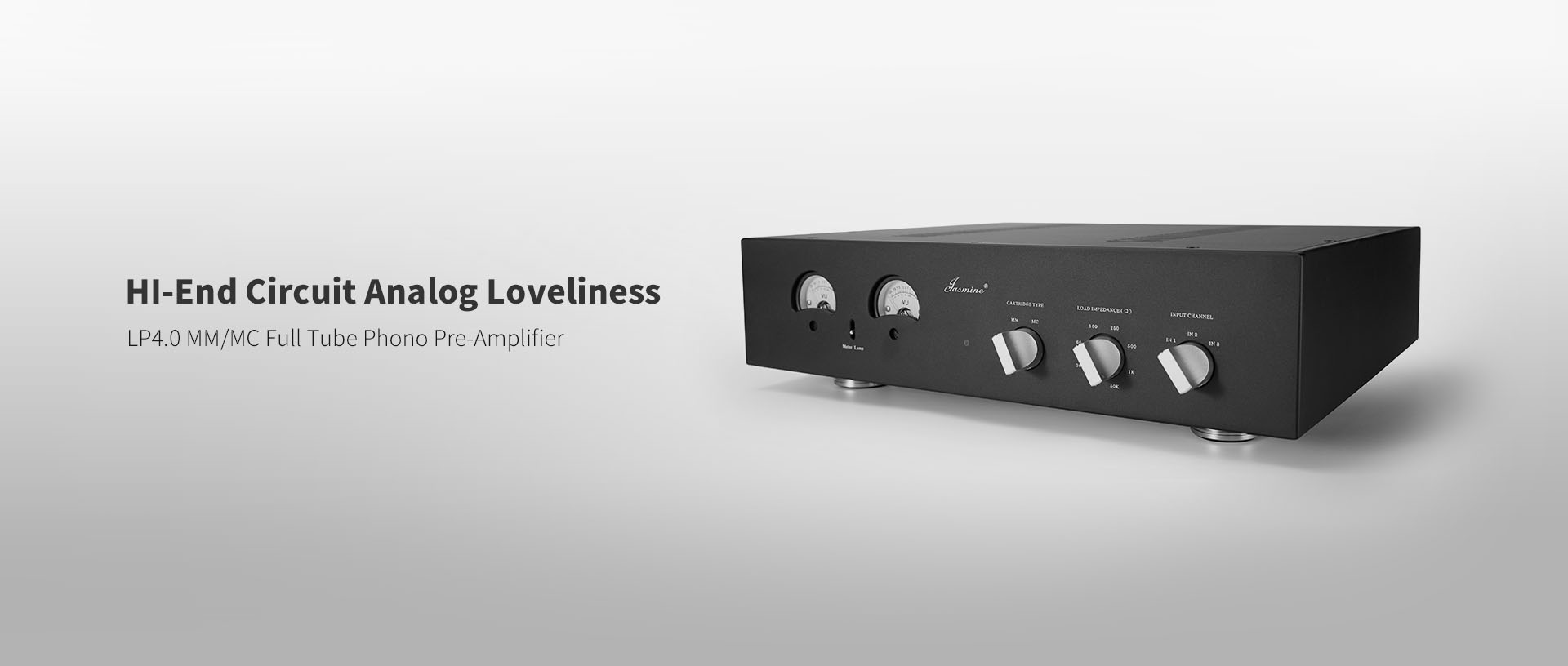

Deluxe Full Tube Design

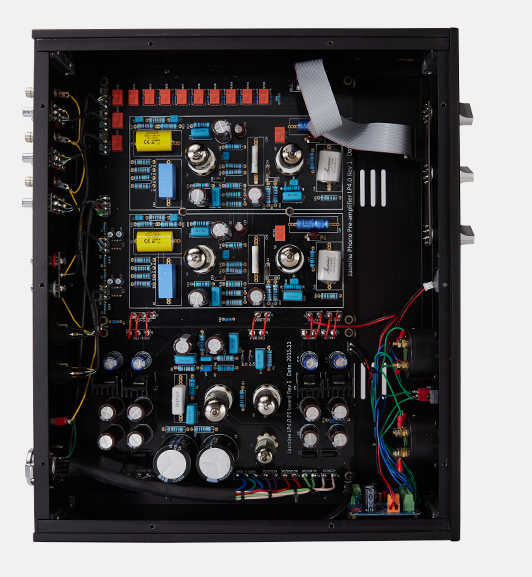

Full tube circuit, 3 tubes in power section, 4 tubes in amplifier section. All components are HIFI level, carefully selected and paired.

MM and MC MODE, High S/N Rate

LP4.0 support MM and MC cartridge, MC mode can get 70dB gain, So, it work no problem with 0.1mv low output MC cartridge.

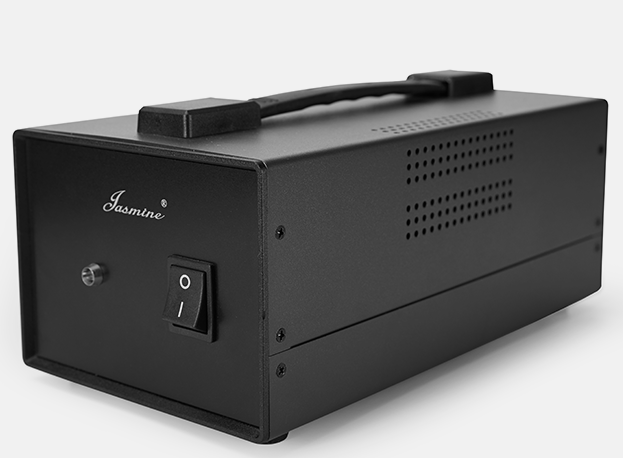

Independent power supply, Reduce interference

The LP4.0 power supply is also designed according to the Hi-End standard. The independent power supply chassis is separated from the amplifier circuit and the radiation interference of the transformer to the amplifying circuit is effectively eliminated.

Traditional Style, Analog feature

Two VU meters lighted by orange color, Give a warm and peaceful feeling.

Specification

INTERFACE

INPUT: 3 * RCA STEREO

OUTPUT：1 * RCA STEREO，1 * XLR STEREO
LOAD IMPEDANCE:

MM = 47KΩ

MC = 15/30/60/100/500/1KΩ (selectable)

INPUT CAPACITANCE:

MM/MC = 100pF
SIZE:

PHONO BOX：430(W) x 370(D) x120(H) mm

POWER BOX：280(W) x 150(D) x120(H) mm

PACKING SIZE：520 * 500 * 350mm
GAIN @1KHz:

RCA OUTPUT：MM=40dB/MC=65dB，

XLR OUTPUT：MM=45dB/MC=70dB，

RIAA EQ DISTORTION:- 0.03 ~ +0.15dB ( 20Hz to 20KHz )

TOTAL DISTORTION: < 0.01 ( 20Hz to 20KHz )

S/N: MM > 85dB , MC > 78dB
TUBES：

POWER SUPPLY: 1* 6Z4, 1* 12AT7，1* 6C19

PHONO STAGE: 2*12AX7 + 2*12AX7

POWER CONSUMPTION:

80W (MAX)

PACKING WEIGHT：16KG
