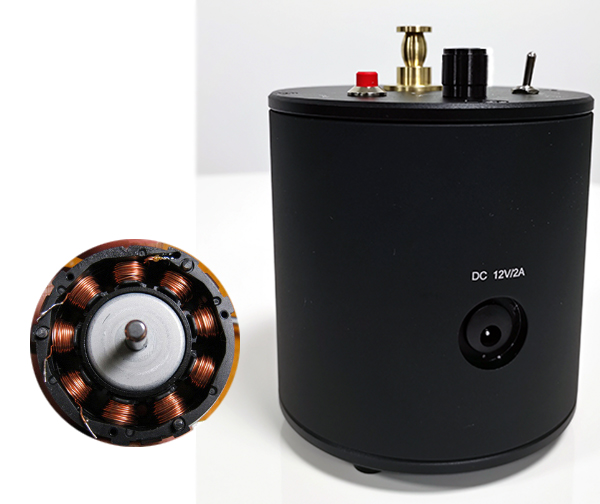

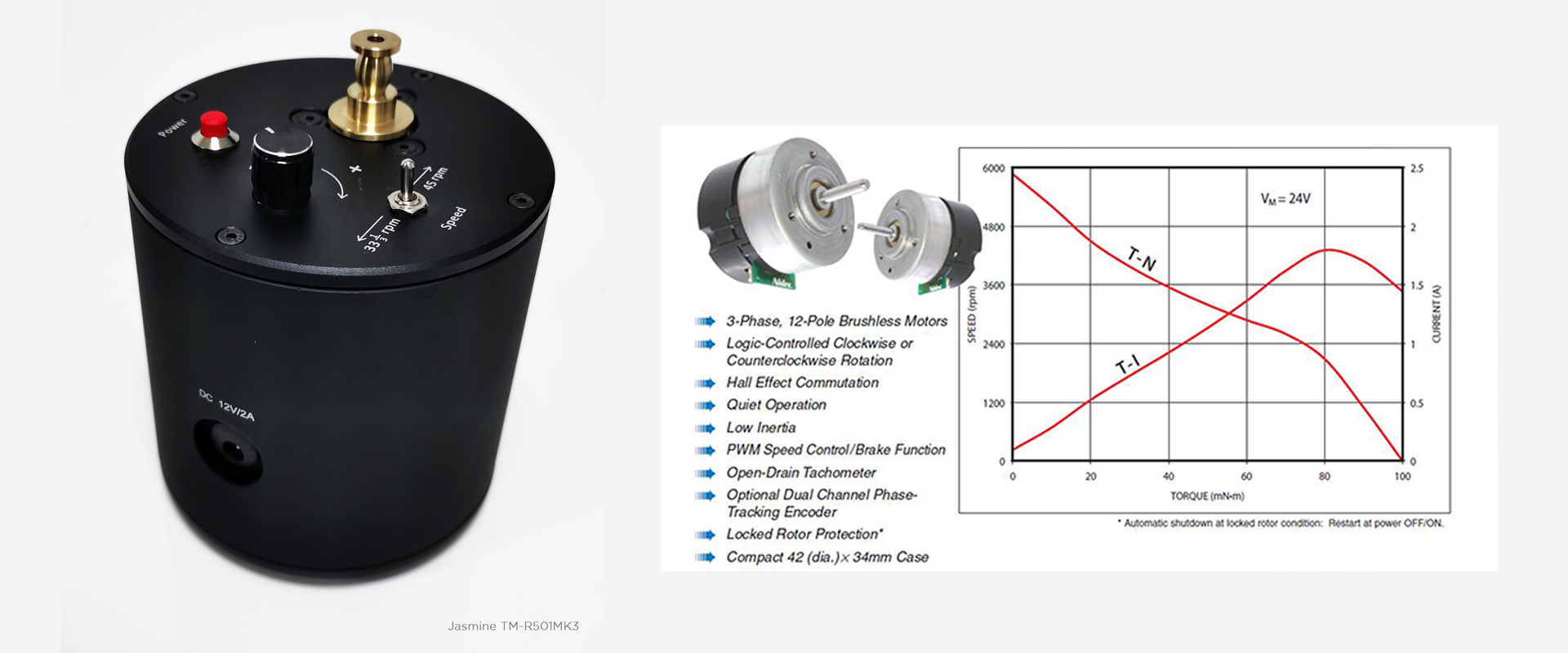

High torque brushless DC motor
3-phase 9 poles high torque, starts smoothly, and the brushless motor own lower the friction during working, greatly reduces the vibration, runs smoothly and has a long life.

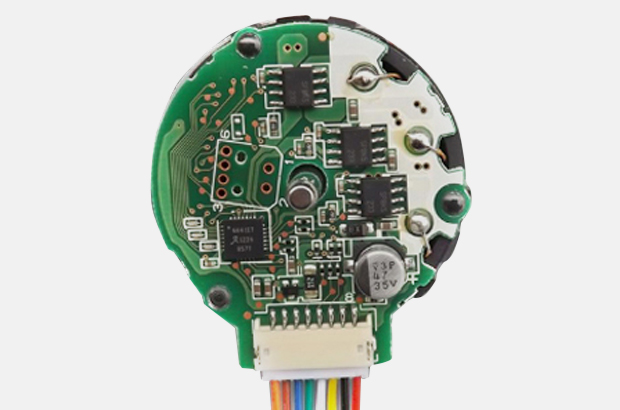

MCU intelligent precise speed control
Accurately control the speed and follow the speed, Guarantee the turntable rotates more stably.

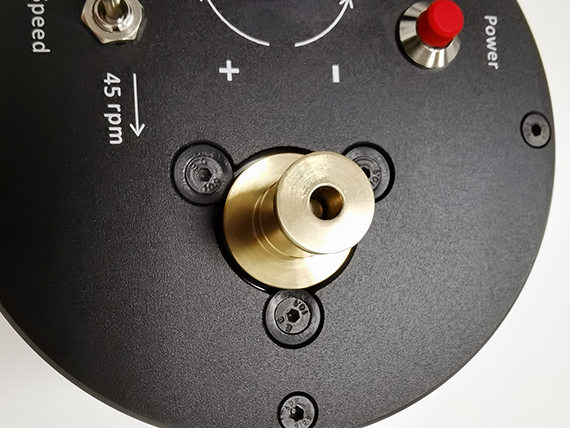

33 1/3rpm and 45rpm two gear supported
Accurate and stable constant speed; automatic memory after speed tuned.
Motor vibration isolation, very low noise,.
Specification
-
Hight
128mm
-
Diameter
100mm
-
Weight
1.7kg
-
Power Supply
DC 12V/2A
-
Belt
1000*5*1mm （Perimeter*Width*Thickness）
-
Packing Weight
2.0KG
-
Packing Size
230(L)*195(W)*220(H) mm
