Conical Jointed-diamond stylus

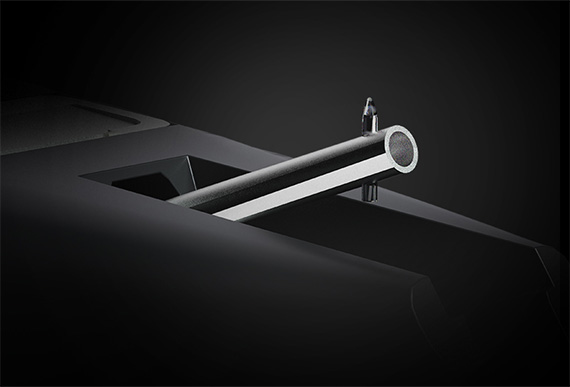

Hard coating aluminum cantilever
Excellent tracking ability

Strong NdFeB Magnet
Core structure: Inverse coupled four coils
Clear sound stage and High channel separation

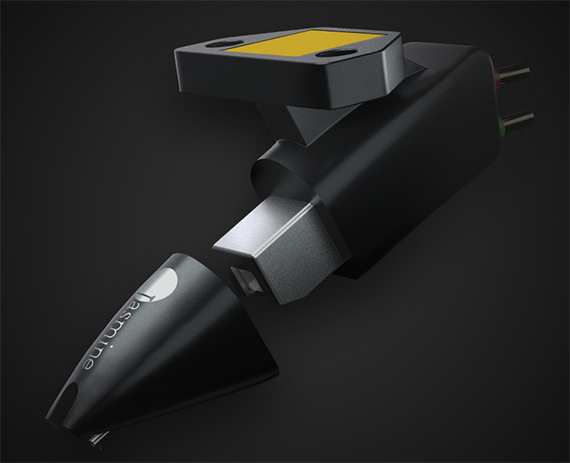

Bionic streamlined body
Beautiful and smooth, absorbing resonance
The sound is clear and dense
New materials and design bring new transcendence to tradition

Specification

  • Type

    MM

  • Coil

    0.03mm TPC

  • Stylus

    Conical bonded diamond

  • Cantilever

    Hard coating aluminum

  • Height

    18mm

  • Weight

    4.8g

  • DC resistance

    270Ω

  • OUTPUT（1KHZ，5cm/s）

    3.5mV

  • Freq. Response

    20 - 20KHz

  • Channel Separation

    > 23dB@1KHz

  • Channel Balance

    < 1.5dB

  • Tracking Force

    2.0-3.0g

  • Recommend Tracking Force

    2.5g

  • Load Impedance
    47KΩ

  • Load Capacity

    100 - 200 pF

  • Compliance

    9.0um
